Major project: Mechanical installation of kiln line 8 at Märker Zement

Industry

Stone/Earth/Cement

Services

Construction management & supervision, Mechanical assembly, Pipline assembly

Country

Harburg (Schwaben), Germany

Status

abgeschlossen

2,100 tonnes of steel structures, 2,800 tonnes of equipment - this key data impressively describes the scope of the project in Harburg (Schwaben, Germany). At Märker Zement, we have taken on the entire mechanical assembly of a complete kiln line 8. The new kiln system is being built parallel to the existing production line and will replace the existing kiln which is now 50 years old. Completion is planned for spring 2022.

Employees

Months of construction time

2.800

Tonnes of mechanical equipment

2.100

Tonnes of steel structure

Pictures

The individual construction sites

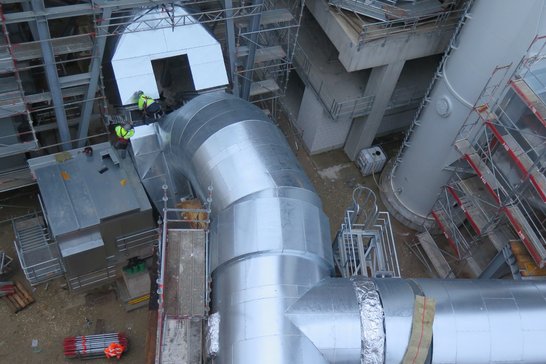

The mechanical assembly of the complete kiln line comprises 2,100 tonnes of steel structures and 2,800 tonnes of equipment. This includes the complete cyclone heat exchanger tower with a height of 110 metres, the rotary kiln, the clinker cooler with dust rextraction, and the ancillary installations.

Great heights - heavy loads

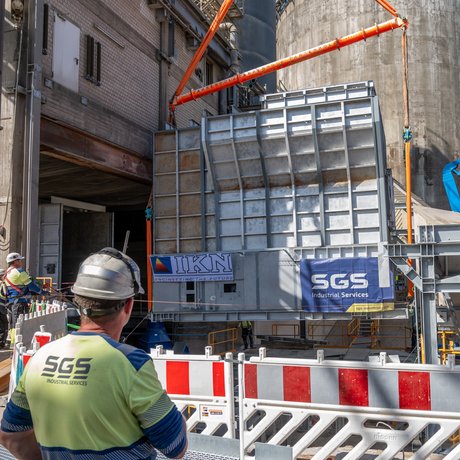

Heights of up to 110 m and heavy lifts challenged our experienced SGS team. To minimise the welding effort on site, individual furnace segments were pre-welded and delivered directly to the construction site using heavy transport vehicles. Individual sections measured up to 36 m in length and weighed up to 190 tonnes. The individual segments were lifted and positioned using cranes which required safe and precise work combined with good coordination.

Pioneering waste gas purification technology - New cement kiln

In addition to securing the Harburg (Schwaben) site, the main aim of the new kiln plant is to improve environmental and climate protection. The new kiln 8 has a significantly lower fuel energy requirement while maintaining the same production volume. Fuel-related CO2 emissions will be reduced by about a quarter, approximately 60,000 tonnes. This is roughly equivalent to the annual oil heating emissions of 15,000 private households.

Project data

Commissioner: IKN GmbH
Customer: Märker Zement GmbH
Industry: Stone/Earth/Cement
Construction location: Harburg (Schwaben), Germany
Contruction period: 14 months, February 2021 – March 2022
Contributors: 65
Specialties: 110m high cyclone heat exchanger tower, heavy lifts weighing up to 190 tonnes
Scope of delivery & service: Mechanical assembly of the new kiln line 8

About our customer, IKN GmbH

IKN GmbH has its headquarters in Neustadt, Germany and employs around 170 people. The roots and strengths of the company lie within the cement industry in the field of clinker cooling.
