  SGS assembles components in the new CCGT power plant in Herne

Industry
Energy
Services
Construction management & supervision, Electrical installation, Mechanical assembly, Project Management
Country
Herne, Germany DE
Status
completed
This is Siemens Energy's fourth project in a row. After Berlin Marzahn, Wolfsburg and Keadby, our experienced SGS personnel were also deployed in Herne. We took on the entire mechanical and electrical installation of the gas and steam turbine power plant with district heat extraction (CCGT with CHP). The new power plant is one of the most efficient and environmentally friendly gas and steam power plants in the world and secures the electricity and heat supply for more than 200,000 households in the heart of the Ruhr area.
70
Employees

12
Months of construction time

130
Tonnes of steel structure

2.800
Tonnes of mechanical equipment


The individual construction areas

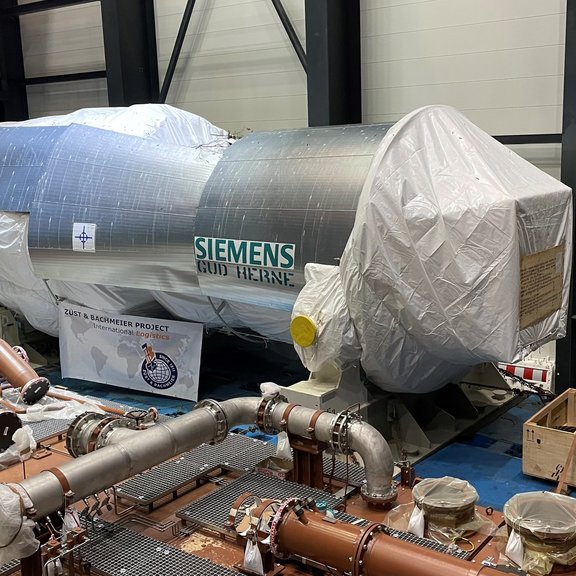

Right at the beginning of the installation, the heart of the plant, the 457-tonne gas turbine, was delivered. The entire assembly work included the mechanical assembly of the turbo set consisting of the high-pressure and low-pressure steam turbine, the gas turbine, the generator system, the condenser, the air inlet (air intake) and the ancillary equipment (tanks, pumps, heat exchangers, ...). In addition, we looked after the cable routing, cable tnsion, measuring and control technology, cable connection, bus duct (generator discharge) and transformer assembly including oil filling.

SGS supports CO2-friendly energies

The CCGT power plant generates slightly more than 600 megawatts of electricity and 400 megawatts of heat. The plant achieves a fuel efficiency of over 85 percent, making it one of the most efficient and environmentally friendly CCGT plants in the world.

The new CCGT power plant has been built at an existing STEAG power plant site in Herne. From the end of 2022, it will replace a hard coal-fired power plant currently operating at the same site.

Trouble-free project flow

At peak times, up to 70 SGS employees were on duty for around 12 months. Our experienced team installed the new plant professionally and on time according to the highest international installation standards. Our remaining team of fitters is currently undertaking the residual work and assisting with the commissioning.

Project data

Commissioner
Siemens Gas and Power GmbH & Co. KG
Customer
STEAG GmbH
Industry
Energy
Construction location
Herne, Germany
Contruction period
12 months, September 2020 – August 2021 (Main assembly)
Contributors
70
Scope of delivery & service
Mechanical and electrical installation of a gas and steam turbine power plant with district heat extraction.
